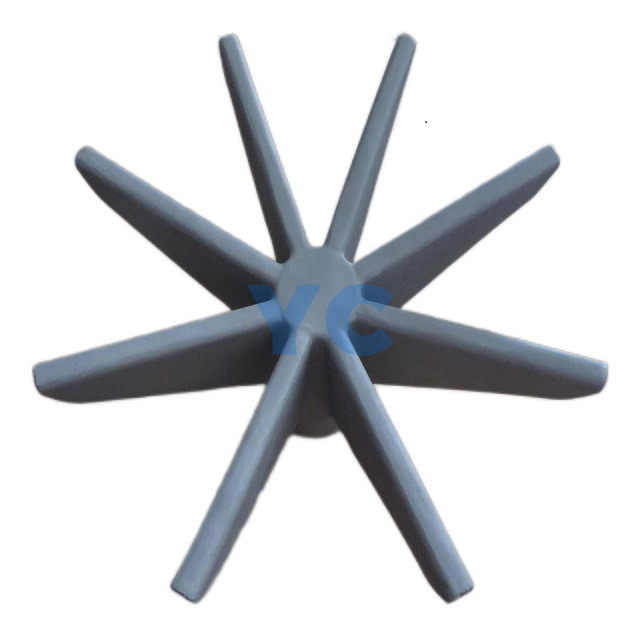

Heat-resistant Steel Flare Part for Combustion System

Name：Heat-resistant steel flare part for combustion system

Material: Stainless steel, Alloys, Hastelloy

Unit Weight: 0.20-130kg

Manufacturing process: Investment casting, silica sol technique, lost wax process

This casting part is a burner flare part, used for combustion system. It has high precision and complex geometry. The part has uniform micro-structures, excellent mechanical properties, and smooth surface finish. It is constructed with stainless steel or Inconel for acid/sulfide resistance. It can withstand 800℃~1200℃ for complete combustion of hazardous gases.

The main functions of the part include safe venting, environment protection, pressure control, waste management and emergency handling. It is configurable with multiple flare tips for variable flow rates. Steam/air-assisted combustion minimizes smoke and unburned hydrocarbons

With their efficiency, safety, and environmental benefits, combustion flares have become essential equipment in modern industry. They are widely used in petrochemical, refining, waste treatment, aerospace (rocket testing), energy and power industries.

1. What is your product weight range ?

Casting weight range of our products is 6g to 130kg. The max outline is 1000mm.

2. Do you have the capabilities for large and/or small production?

We have the flexibility to handle both large and small production lot runs.

3. What kind of development tools do you adopt ?

CAD,SOLIDWORKS ,PRO-E.

4. What is the One-stop service of Yicheng?

One-stop service means from the pattern developing, technique finalizing to final machining including surface treatment.
