Lost Wax Casting Submersible Pump Guide Impeller

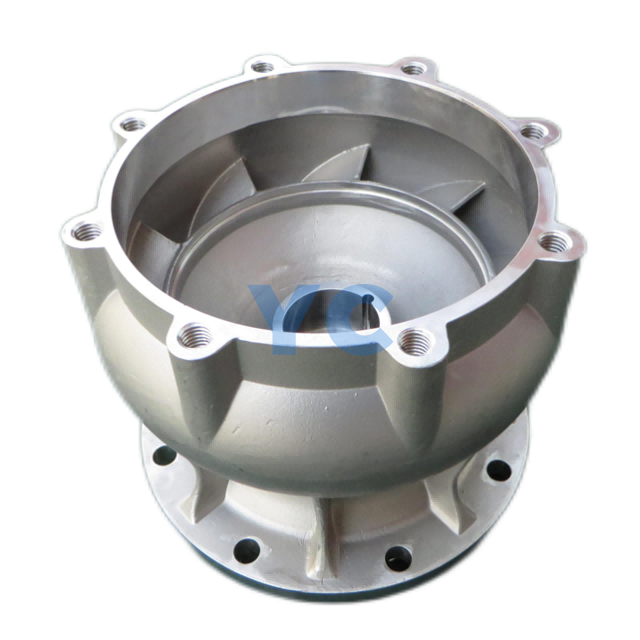

The Lost Wax Casting Submersible Pump Guide Impeller is a specialized component designed for deep-well and submersible pumps operating in harsh underwater environments. Manufactured from corrosion-resistant stainless steels such as 316L (UNS S31603) or 2205 duplex (UNS S32205), these impellers undergo precision investment casting to create intricate blade geometries that optimize fluid guidance and reduce axial thrust, ensuring stable operation at depths up to 500 meters (1,640 feet).

Engineered with anti-clogging features and smooth surface finishes (Ra ≤ 1.6μm), the guide impellers meet IEEE 1524 and ISO 14692 standards for submersible pump reliability, even in silt-laden, saline, or chemically aggressive waters.

The complex inner cavity design can significantly enhance fluid dynamics performance, thereby improving the working efficiency and energy conversion rate of the impeller. Additionally, this design helps reduce energy loss during fluid flow, lowers noise and vibration, and enhances the stability and service life of the equipment.

Hydrodynamic Blade Design: Low-angle guide vanes (10-15°) and streamlined profiles minimize vortex formation and pressure loss, improving pump efficiency by 8-10% compared to conventional designs.

Superior Corrosion Protection: 316L impellers resist pitting in seawater (≤ 35,000 ppm Cl⁻), while duplex 2205 handles brackish water and sulfide-rich wells, with optional electropolishing to enhance surface passivation.

Abrasion Resistance: Reinforced vane edges (3-5mm thickness) and optional ceramic coatings (Al₂O₃) endure erosion from sand particles (≤ 200μm diameter), extending service life in high-sediment wells.

Structural Integrity: Stress-relieved casting and ultrasonic testing ensure defect-free components, with wall thicknesses optimized via FEA to withstand external hydrostatic pressures (up to 50 bar/725 PSI at 500m depth).

It encloses the impeller and guides the fluid flow, ensuring efficient movement from the intake to the discharge outlet. The casing is designed to withstand the pressure generated by the impeller and to direct the fluid with minimal energy loss.

Submersible pumps are versatile and essential devices widely used across various industries for efficient fluid management. They are commonly employed in water supply and irrigation systems to extract groundwater for domestic, agricultural, and industrial applications.

Marine & Offshore: Used in submersible pumps for seawater intake systems and offshore platform dewatering, with duplex 2205 impellers resisting biofouling and chloride-induced pitting.

Geothermal Energy: Deployed in deep-well pumps for geothermal brine extraction, where 316L impellers withstand high-temperature (200°C/392°F) and mineral-laden fluids.

Municipal Water Wells: Integral to submersible pumps in groundwater extraction, with electropolished 316L impellers meeting NSF/ANSI 61 standards for potable water applications.

Mining Dewatering: Handles acidic mine water (pH 2-4) and abrasive slurries, with tungsten carbide-coated impellers enduring erosion from iron sulfide particles and maintaining flow capacity over long service intervals.

Q: What is the maximum submersion depth these impellers can handle?

A: Standard designs are rated for 300m (984ft); custom thick-walled impellers with pressure-rated alloys (e.g., Inconel 625) can operate at depths up to 1,000m (3,280ft).

Q: How are air bubbles managed in the guide vanes?

A: The blade geometry includes air-release channels that direct gas bubbles to the pump discharge, preventing cavitation and performance degradation in gassy fluids.

Q: Can these impellers be used with non-stainless steel pump components?

A: Yes—they are compatible with carbon steel, bronze, or other alloys, provided proper galvanic corrosion protection (e.g., sacrificial anodes) is implemented in mixed-metal systems.
