Product Introduction

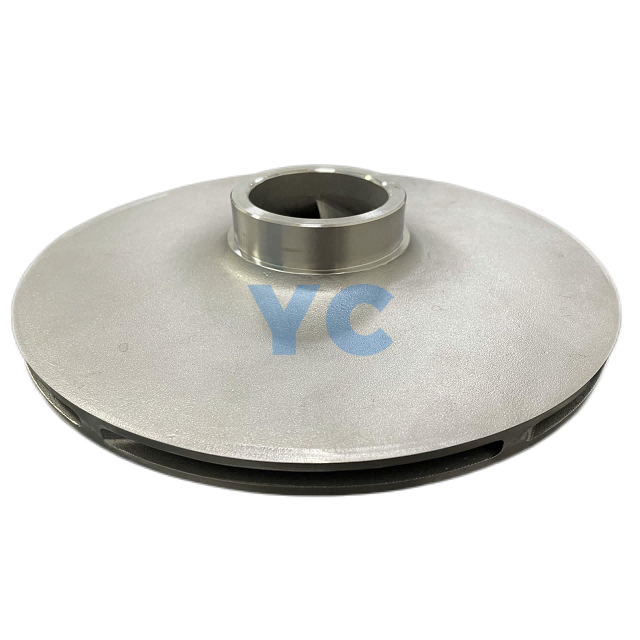

Name：Lost wax impeller for API 610 pump industry
Material: Stainless steel,duplex stainless steel,Carbon steel,Nickel-based alloy, Copper acc to International standards
Unit Weight: 0.5kg-130kg
Manufacturing process: 3D printing investment casting, silica sol technique.
Product Advantage
Narrow channel closed impellers are manufactured using advanced processes such as the ceramic core and dissolvable core techniques. These processes enable the precise fabrication of complex narrow flow channels and intricate cavities, ensuring that the impeller delivers with high performance and optimized hydraulic efficiency. They have the characters of corrosion resistance, low noises and wear resistance.
Product Uses
The impeller for a pump is a key component designed to transfer energy from the motor to the fluid. Through rotation, it generates centrifugal or axial forces, which propels the fluid and increases its pressure. This mechanism enables the pump to transport liquids efficiently, making impellers indispensable for applications in water supply, industrial processes, and wastewater management.
Product Application
Impellers are widely used across various industries due to their critical role in fluid movement and pressure generation. They are utilized in water treatment, petrochemical process, power&energy, food&beverage, agricultural irrigation, oil&gas operations, aerospace, and marine&offshore engineering.
FAQ
1. What is your product weight range ?
Casting weight range of our products is 6g to 130kg. The max outline is 1000mm.
2. Do you have the capabilities for large and/or small production?
We have the flexibility to handle both large and small production lot runs.
3. What kind of development tools do you adopt ?
CAD,SOLIDWORKS ,PRO-E.
4. What is the One-stop service of Yicheng?
One-stop service means from the pattern developing, technique finalizing to final machining including surface treatment.
