Pumps are critical components of countless industrial applications, moving fluids through systems with varying degrees of pressure, speed, and volume. At the heart of these mechanical systems are three essential components: volutes, casings, and impellers. These pump components work in tandem to facilitate fluid movement while ensuring system efficiency and operational longevity. Understanding the function and design of each component can help engineers and operators optimize pump performance, reduce energy consumption, and extend equipment lifespan.
In this article, we will dive deep into the roles of volutes, casings, and impellers in pump systems. By the end of this guide, you'll have a clear understanding of each component's importance, how they interact within the pump, and how to select the best components for specific pumping needs.
The pump casing is the outer structure of a pump, and it plays a crucial role in the containment and protection of internal pump components. It is typically designed to house the impeller, volute, and other internal parts, ensuring the fluid remains contained within the system while allowing it to flow through the pump effectively.
A well-designed pump casing is key to the efficiency of the entire pumping system. Its primary purpose is to direct the flow of fluid towards the impeller, allowing the pump to generate the required pressure. Moreover, the casing prevents leakage, which could lead to inefficiencies or even equipment failure. Materials used in pump casings can vary based on the type of fluid being pumped (e.g., corrosive chemicals, oils, or clean water) and the operating conditions, such as pressure and temperature.
When selecting a pump casing, it is important to consider several factors:
Material selection: This is critical for ensuring corrosion resistance and durability.
Design shape: The casing design must support optimal fluid flow and prevent unwanted turbulence.
Pressure ratings: The casing must be capable of withstanding the pressure of the pumped fluid.
The volute is a spiral-shaped component attached to the casing that helps convert the kinetic energy of the fluid, generated by the impeller, into pressure energy. As the fluid enters the volute, the spiral shape forces it to gradually slow down while increasing its pressure. This transformation of energy is essential for efficient pump operation.
A well-designed volute can have a significant impact on pump efficiency. When fluid enters the volute at high speed, its velocity is reduced as it moves through the expanding spiral, resulting in higher pressure. This process is crucial in many centrifugal pump applications, where maximizing energy efficiency and minimizing energy losses is vital.
Some factors to consider in volute design include:
Shape and size: The volute's curvature and expansion rate must be carefully designed to handle the flow rate and pressure requirements of the pump.
Wear resistance: Depending on the fluid being pumped, the volute may be subject to erosion or corrosion, requiring careful material selection.

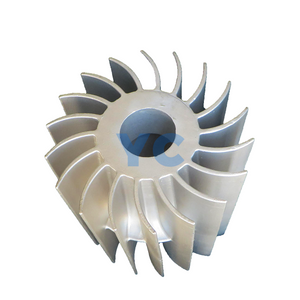

The impeller is the heart of a pump, responsible for imparting energy to the fluid to initiate flow. This rotating component is typically a set of blades or vanes that interact with the fluid, accelerating it and directing it into the pump casing or volute. The impeller's performance directly influences the pump's flow rate, pressure generation, and overall efficiency.
There are various types of impellers used in pumps, including:
Open impellers: These impellers lack a shroud and allow for easy passage of fluid through the blades.
Closed impellers: These impellers have a shroud around the blades, providing more stability and higher efficiency.
Semi-closed impellers: These impellers combine the features of both open and closed impellers.
The impeller's design and materials play a significant role in determining pump performance, especially in terms of its ability to handle various fluid viscosities, temperatures, and pressures. Impellers are typically made from materials like stainless steel, bronze, or composite materials depending on the specific application.
The interaction between the pump casing, volute, and impeller is vital to achieving efficient fluid flow. The impeller generates the kinetic energy necessary for fluid movement, while the volute transforms this kinetic energy into pressure. The casing ensures the fluid stays contained and directed in the desired path. All three components must work seamlessly together to ensure that the pump operates efficiently, with minimal energy loss and wear.
When designing a pump system, the size and shape of each component should be tailored to suit the specific application, fluid characteristics, and operational requirements. For instance, a poorly designed casing can lead to cavitation, a phenomenon where vapor bubbles form in the fluid and collapse, causing damage to the pump components.
A well-constructed pump casing can greatly enhance the efficiency and performance of the entire pump system. A poorly designed or malfunctioning casing, on the other hand, can cause problems such as leaks, cavitation, and excessive vibration. Therefore, the design of the casing should always take into account factors such as:
Flow path geometry: The casing should be designed to minimize turbulence and ensure smooth flow of the fluid into the volute and impeller.
Leak prevention: The casing must have reliable seals to prevent leaks, which can lead to system inefficiency or even failure.
Heat resistance: In high-temperature applications, the pump casing should be made of materials that can withstand the operating conditions without degrading.
The materials used in the construction of the volute, casing, and impeller directly affect the performance, durability, and cost of the pump. Common materials include:
Stainless Steel: Offers corrosion resistance and is ideal for handling a wide range of fluids.
Bronze: Commonly used in smaller pumps due to its good wear resistance.
Cast Iron: Often used in industrial pumps due to its strength and cost-effectiveness.
Plastics and Composites: These materials are increasingly used in non-corrosive applications, especially in sanitary or food-grade pumps.
Each material offers a different balance of durability, cost, and resistance to wear and corrosion, so choosing the right material for your pump components is crucial for optimizing performance.
Maintaining pump components, particularly the casing, volute, and impeller, is essential to ensuring the pump operates efficiently and has a long service life. Here are some maintenance tips:
Regular inspections: Inspect the casing for signs of wear or cracking, and check that seals are intact to prevent leaks.
Cleaning: Regular cleaning of the volute and impeller helps prevent clogging or the build-up of debris that could hinder performance.
Lubrication: Ensure that the pump bearings and other moving parts are adequately lubricated to reduce wear.
Monitoring performance: Keep an eye on flow rate, pressure, and energy consumption to detect any changes that may indicate wear or damage.
In summary, the components of a pump—volutes, casings, and impellers—are integral to the efficiency and functionality of the pump system. Each part plays a specific role in ensuring that the pump can move fluid with the right pressure and flow rate while maintaining durability and minimizing energy consumption. Proper design, material selection, and maintenance of these components are key to achieving optimal pump performance and longevity.
1. What is the primary function of a pump casing?
The pump casing houses the internal components, such as the impeller and volute, and directs the flow of fluid through the system. It is essential for ensuring containment, preventing leaks, and maintaining pressure.
2. How does a volute contribute to pump performance?
The volute converts the kinetic energy generated by the impeller into pressure energy, ensuring that the pump operates efficiently and delivers the required pressure.
3. What materials are used for pump impellers?
Impellers are commonly made from stainless steel, bronze, and other materials based on the specific application. The choice of material depends on factors like fluid type, temperature, and pressure.
4. How can I ensure the longevity of my pump system?
Regular maintenance, including inspections, cleaning, lubrication, and monitoring performance, is essential to prolonging the lifespan of the pump components, including the casing, volute, and impeller.
