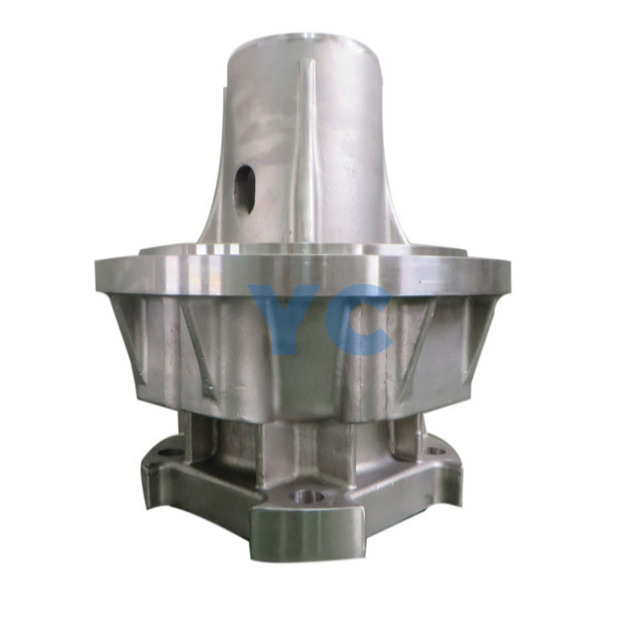

Best Plunger Pump Casting Parts​
Best Plunger Pump Casting Parts​ Best Plunger Pump Casting Parts​

loading

Best Plunger Pump Casting Parts​

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Material: Stainless steel, duplex stainless steel, Carbon steel, Nickel-based alloy, Copper

Unit Weight: 5kg-120kg

Manufacturing process: Alloy steel investment casting, silica sol technique.
Availability:
Quantity:

Product Introduction


The Best Plunger Pump Casting Parts are high-performance components engineered for reciprocating plunger pumps operating under extreme pressure and abrasive conditions. Manufactured from high-strength stainless steels like 410 (UNS S41000) or precipitation-hardened 17-4 PH (UNS S17400), these parts—including plungers, valve plates, and cylinder heads—undergo precision casting, heat treatment (up to 45 HRC), and surface nitriding to deliver exceptional wear resistance and dimensional stability.


Designed for tight clearance fits (0.01-0.03mm) and zero-leakage sealing, the parts meet API 674 and ISO 2858 standards for industrial plunger pumps, ensuring reliable operation in high-pressure fluid metering and hydraulic systems.


Product Advantage


The cylinder block requires the use of high-strength and wear-resistant materials, and demands high-precision machining to ensure smooth movement and sealing of the plunger. After being formed by the investment casting process, heat treatment and other steps are applied to ensure hardness and wear-resistance.

Extreme Pressure Resistance: Hardened surfaces (40-50 HRC) withstand pressures up to 2,000 bar (29,000 PSI), with 17-4 PH plungers offering superior fatigue resistance in cyclic loading applications.

Abrasion-Resistant Coatings: Electroless nickel-plated (ENP) or tungsten carbide (WC) coatings on contact surfaces reduce friction and wear, achieving ≥ 10,000 hours of service life in abrasive slurries.

Precision Surface Finish: Ground and lapped surfaces (Ra ≤ 0.2μm) ensure optimal seal performance, while polished plunger shafts minimize lubrication requirements and prevent fluid contamination.

Customizable Seal Grooves: Engineered with multiple O-ring or packing gland grooves to accommodate diverse sealing materials (e.g., PTFE, viton), enabling compatibility with corrosive or high-temperature media.


Product Uses


The cylinder block serves as the main body of the pump and houses the piston. The piston moves back and forth within the cylinder block, creating pressure that drives the hydraulic fluid through the system. The retainer plate keeps the piston in place and ensures that it moves smoothly and efficiently.


Product Application

The cylinder block, as the structural core of a plunger pump, plays a critical role in maintaining pressure integrity and guiding piston movement, enabling the pump’s high-pressure and precision capabilities.They are used in Industrial Hydraulics, Energy Systems, Medical Devices.

Oil & Gas: Used in high-pressure injection pumps for fracking and well stimulation, with 410 stainless steel parts resisting hydrogen sulfide (H₂S) stress corrosion in sour gas environments.

Chemical Metering: Integral to metering pumps for precise dosing of acids, alkalis, and polymers in pharmaceutical and agrochemical production, ensuring repeatable flow rates (±0.5% accuracy).

Hydraulic Systems: Forms the core of industrial hydraulic pumps in press machines and heavy equipment, with 17-4 PH components maintaining strength at elevated temperatures (up to 300°C/572°F).

Mining Exploration: Deployed in mud pumps for drilling rigs, where chromium-plated plungers endure erosion from bentonite slurries and abrasive drilling fluids.


FAQ


Q: What is the recommended lubrication for these plunger parts?

A: For non-corrosive media, synthetic oils with high viscosity indices (VI ≥ 150) are ideal; for aggressive fluids, dry-running PTFE coatings eliminate the need for external lubrication.

Q: Can these parts be used with abrasive fluids containing solids?

A: Yes—WC-coated plungers and carbide-reinforced valve seats are specifically designed for fluids with up to 20% solids by volume, provided particle size is ≤ 50μm.

Q: What is the typical tolerance for plunger straightness?

A: Plungers are ground to a straightness tolerance of ≤ 0.01mm/m, ensuring minimal lateral movement and extended seal life in high-stroke applications.


Welcome to contact us via email!
