When it comes to designing efficient pumps, the type of casing used plays a critical role in the overall performance and reliability of the system. Two popular types of pump casings are the volute casing and the diffuser casing, each with unique advantages, applications, and performance characteristics. Understanding these differences is essential for engineers, designers, and those responsible for selecting the most suitable pump design for a specific application.
In this comprehensive guide, we will explore the key differences between volute vs. diffuser casing, discuss their impact on pump efficiency, and highlight the scenarios in which each casing is most appropriate. By the end of this article, you will have a clear understanding of both pump casing types, enabling you to make more informed decisions when it comes to pump design and selection.
Before diving into the specific differences between volute and diffuser casings, it’s important to first understand what a pump casing is and why it matters. A pump casing is the outer structure that encases the internal components of a pump, such as the impeller, shaft, and bearings. Its primary function is to direct the flow of fluid from the inlet to the outlet, and it plays a significant role in the efficiency of the pump.
Pump casings are designed to minimize energy losses, reduce wear and tear on internal components, and ensure smooth and consistent flow. The choice of casing design directly influences the performance, lifespan, and cost-effectiveness of the pump.
Now, let's explore the core differences between volute casings and diffuser casings, and how each design impacts pump operation.

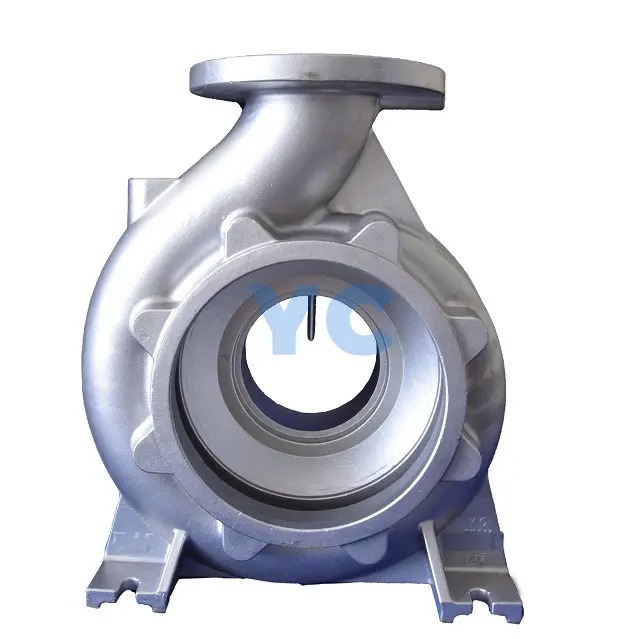

A volute casing is one of the most common pump casing designs. It is typically used in centrifugal pumps, where the fluid enters the pump impeller, and the energy imparted by the impeller is converted into kinetic energy. The volute refers to the spiral-shaped casing that surrounds the impeller. As the fluid exits the impeller, it flows radially outward and into the volute, where the shape of the casing helps convert the kinetic energy into pressure.
The volute casing gradually widens in cross-sectional area as the fluid moves outward, slowing the fluid down and increasing the pressure. This shape ensures that the fluid is evenly distributed before exiting the pump.
Simple Design: The volute casing has a straightforward design, which makes it easier to manufacture and maintain. It’s typically more cost-effective than other casing types.
Efficient Flow Handling: Due to its spiral design, the volute casing is highly effective at handling fluid flow. The gradual increase in cross-sectional area ensures smooth deceleration of the fluid and helps convert kinetic energy into pressure with minimal energy loss.
Suitable for Various Applications: Volute casings are ideal for a wide range of applications, including water pumping, HVAC systems, and industrial pumping processes. Their simplicity makes them versatile and easy to integrate into different pump systems.
Cost-Effective: Volute casings are generally less expensive to produce compared to diffuser casings, making them a popular choice for budget-conscious applications.
Water Treatment Plants: Widely used in water pumping systems due to their efficiency and simplicity.
Industrial Applications: Ideal for general-purpose pumps in industries such as agriculture, chemical, and oil refining.
HVAC Systems: Common in heating, ventilation, and air conditioning systems to circulate fluids effectively.
A diffuser casing is another type of pump casing design used in centrifugal pumps. Unlike the volute casing, the diffuser casing consists of a series of stationary blades or vanes that surround the impeller. These vanes guide the flow of fluid as it leaves the impeller, directing it into a larger area in the casing, where the fluid slows down and the pressure increases.
The diffuser casing design aims to reduce turbulence and energy losses by controlling the fluid flow with precision. The combination of vanes and the larger cross-sectional area helps improve the pump’s overall efficiency by maintaining a more consistent flow path.
Higher Efficiency: Diffuser casings are known for their ability to maintain a more stable flow pattern. By reducing flow turbulence and better managing energy dissipation, diffuser casings can achieve higher efficiency compared to volute casings, especially in high-flow applications.
Improved Pressure Recovery: The diffuser design enhances the recovery of pressure from the kinetic energy of the fluid. This is especially important in systems where consistent pressure and flow are required.
Lower Energy Consumption: Because diffuser casings reduce turbulence and improve energy recovery, they can lower the overall energy consumption of the pump, making them a good choice for energy-efficient designs.
Enhanced Flow Control: The diffuser casing provides better control over the fluid flow, reducing the chances of cavitation and vibration that can cause damage to the pump components.
High-Pressure Systems: Ideal for pumps used in systems that require consistent high-pressure output, such as in power generation or oil pipelines.
Hydraulic Systems: Often used in large-scale industrial applications requiring precise and stable fluid flow.
Cryogenic Pumps: Suitable for applications where minimizing energy loss is critical, such as in cryogenic and high-temperature processes.
Below is a comparison of the key differences between volute and diffuser casings:
| Feature | Volute Casing | Diffuser Casing |
|---|---|---|
| Design | Spiral-shaped casing that gradually widens | Casing with stationary vanes or blades |
| Energy Efficiency | Moderate energy efficiency, suitable for standard applications | Higher efficiency, especially for high-flow systems |
| Pressure Recovery | Good, but not as effective as diffuser | Excellent pressure recovery, reducing energy loss |
| Flow Control | Less precise, may lead to turbulence | More precise flow control with minimal turbulence |
| Cost | Generally lower cost | More expensive due to complex design |
| Maintenance | Easier to maintain and repair | Requires more maintenance due to vanes and blades |
| Common Applications | General-purpose, water treatment, HVAC | High-pressure systems, cryogenics, large industrial pumps |
A volute casing is typically the best option for applications where cost, simplicity, and general-purpose use are prioritized. For industries or systems where high efficiency is not the primary concern, or where the pump is relatively small or operates under standard conditions, the volute casing provides a reliable, cost-effective solution.
Applications include water treatment plants, HVAC systems, and industrial pumps where fluid flow does not need to be highly controlled or where lower initial costs are a priority.
A diffuser casing, on the other hand, is a better choice for systems requiring high efficiency, consistent pressure, and precise flow control. These pumps are ideal for large-scale industrial applications, high-pressure systems, and any application where energy consumption needs to be minimized.
Applications include power plants, cryogenic fluid handling, and high-pressure oil or gas pipelines, where maintaining stable and efficient flow is critical.
Both volute and diffuser casings offer distinct advantages depending on the application and performance requirements. When deciding between the two, consider factors such as energy efficiency, pressure recovery, maintenance costs, and the nature of the fluid being pumped.
In general, volute casings are an excellent choice for standard applications where cost-effectiveness and simplicity are essential, while diffuser casings are best suited for high-performance environments where efficiency, pressure consistency, and flow control are paramount.
By understanding the differences between these two pump casing types, you can make more informed decisions about which design best suits your specific needs.
Q1: What is the main difference between a volute and diffuser casing?
The main difference is the design. A volute casing uses a spiral-shaped design to direct fluid flow, while a diffuser casing uses stationary vanes or blades to guide the flow and improve pressure recovery.
Q2: Which casing is more energy-efficient?
The diffuser casing generally offers higher energy efficiency because it reduces turbulence and better manages the fluid’s kinetic energy.
Q3: Is the volute casing suitable for high-pressure systems?
While the volute casing can handle moderate pressure, it is not as effective for high-pressure systems as the diffuser casing, which provides better pressure recovery.
Q4: Which casing is easier to maintain?
The volute casing is generally easier to maintain because of its simpler design. The diffuser casing has more complex components, such as stationary vanes, which may require more maintenance.
Q5: Are diffuser casings more expensive than volute casings?
Yes, diffuser casings tend to be more expensive due to their more complex design and higher manufacturing costs.
