When engineers choose investment casting for their critical parts, they often do so because of the superior surface quality it offers compared to sand casting or forging. However, achieving the right surface finish isn't just about making a part look "shiny." In industrial applications, the texture of a component affects its fatigue life, fluid flow efficiency, and how well coatings adhere to it.
Understanding the specific surface finish requirements for precision components allows you to reduce secondary machining costs. Whether you are working with stainless steel for medical tools or a high temperature alloy for aerospace turbines, the "as-cast" surface is your starting point. This guide breaks down what you can expect, how to measure it, and why it matters for your project's success.
In the world of investment casting, we measure surface finish using the $Ra$ (Roughness Average) standard. This value represents the arithmetic average of the profile height deviations from the mean line. Because this process uses a ceramic shell built around a wax pattern, it captures incredibly fine details.
Typically, a standard precision cast part yields a surface finish between 60 and 125 micro-inches (1.6 to 3.2 $\mu m$ Ra). For many industrial valves or brackets, this "as-cast" finish is perfectly acceptable without further work. If your application involves aluminum components for electronics, you might even achieve smoother results due to the metal's lower melting point and fluidity.
| Casting Method | Typical Surface Finish (Ra - μin) | Surface Quality Level |
| Sand Casting | 250 - 500 | Coarse / Rough |
| Investment Casting | 60 - 125 | Smooth / Detailed |
| Die Casting | 32 - 64 | Very Smooth |
| Machining | 16 - 32 | Mirror-like (Secondary) |
Surface finish is more than a cosmetic choice; it is a functional requirement. If a part is too rough, it can act as a breeding ground for bacteria in food-processing equipment or create friction in hydraulic systems.
For high temperature alloy components used in jet engines, a smooth surface reduces "stress risers." These are tiny microscopic valleys where cracks can start under high pressure. By maintaining a precision finish, we extend the lifespan of the component. Furthermore, when using stainless steel in corrosive environments, a smoother surface prevents chemicals from "sitting" in the pores of the metal, which significantly reduces the risk of pitting or rusting.
Several variables dictate the final texture of an investment casting product. We must control these strictly to meet high-end industrial specifications.
The ceramic shell is a direct "negative" of the wax pattern. If the wax has flow lines, bubbles, or scratches, the metal will replicate them perfectly. Using rapid prototyping for wax patterns can introduce "stepping" lines from 3D printing. We often have to smooth these patterns manually to ensure the final metal part stays within precision limits.
The first layer of the ceramic shell (the prime coat) uses very fine zircon flour. This fine "sand" creates the smooth interface with the metal. If the slurry isn't mixed correctly or the stucco particles are too coarse, the investment casting will have a "pebbly" texture.
Aluminum generally produces a smoother finish than steel because it reacts less with the shell material. Conversely, a high temperature alloy poured at extreme heat can slightly melt the ceramic interface, leading to "burn-in" or "metal-mold reaction" which roughens the surface.
Stainless steel is one of the most common materials for precision work, but it poses unique challenges for surface finish. Because it is a hard metal, removing surface defects through polishing is labor-intensive and expensive.

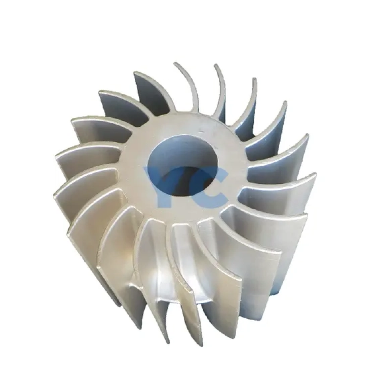

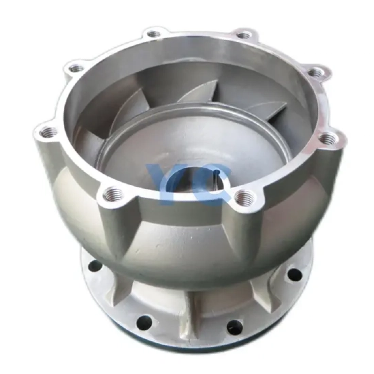

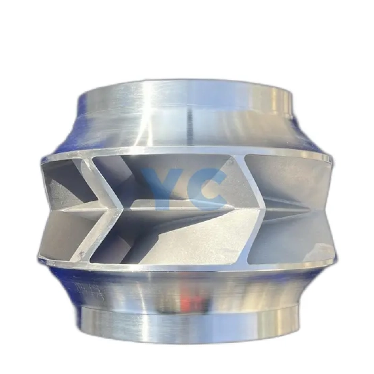

In industrial pumps, the internal vanes must be smooth to prevent turbulence. A standard investment casting finish is usually enough to maintain high flow efficiency. However, if the finish is too rough, the pump loses energy.
For these sectors, the surface must be non-porous. We often use electro-polishing after the investment casting process to take a 125 Ra finish down to 32 Ra or better. This ensures the stainless steel is chemically passive and easy to sterilize.
Sometimes, the standard finish isn't enough. We use several secondary techniques to enhance the precision of the surface depending on the end-use of the part.
Shot Blasting: We use small steel or ceramic beads to "peen" the surface. This creates a uniform matte finish and can actually improve the fatigue strength of industrial parts.
Vibratory Finishing: Parts are placed in a tub with abrasive media. It is excellent for deburring small aluminum or stainless steel components without changing their dimensions.
Chemical Pickling: This removes the "scale" or oxidation layer from parts made of high temperature alloy. It leaves a clean, raw metal surface ready for inspection or coating.
How do we prove a part meets your precision standards? We use a mix of visual and mechanical inspections.
In many industrial settings, we use a "Casting Surface Comparator" block. This is a physical plate with different levels of roughness. Inspectors compare the investment casting surface to the block to ensure it falls within the allowed range. It is a fast, reliable way to check non-critical surfaces.
For critical tolerances, we use a profilometer. This device moves a diamond-tipped stylus across the surface to measure the exact Ra value. If you are developing a high temperature alloy turbine blade, this data is often recorded for every single part to ensure 100% compliance.
Sometimes a surface looks smooth, but it has tiny "micro-pits." We use fluorescent penetrant inspection (FPI) to find these. It is a vital step for precision components that will face high stress, as even a small surface void can lead to part failure.
Rapid prototyping has changed how we approach investment casting. Instead of waiting weeks for metal tooling, we can print a 3D pattern in days. However, there is a trade-off in surface finish.
3D printed patterns often have "layer lines." If we cast these directly, the stainless steel part will look like it was 3D printed. To meet precision requirements, we usually perform one of two actions:
Hand Sanding: Technicians sand the printed pattern before the shelling process.
Post-Machining: We cast the part slightly "over-sized" and machine the critical surfaces to a mirror finish.
This is a crucial consideration during the design phase. If your industrial project requires a 60 Ra finish, rapid prototyping might require extra labor steps compared to traditional wax injection.
You can help us achieve a better surface finish by making small changes to your part design. Simple geometry often results in better investment casting quality.
Avoid Sharp Internal Corners: These areas are hard for the ceramic slurry to coat evenly, which can lead to rough spots or "scabs."
Consistent Wall Thickness: Large changes in thickness can cause "sink marks" in the wax, which translate to the metal.
Gate Placement: Every part needs a "gate" (where the metal enters). This area will always need to be ground smooth. We try to place gates on non-functional, flat surfaces.
By following these precision design rules, we can ensure that your aluminum or industrial steel parts come out of the mold looking their best.
Surface finish requirements for precision investment cast components are a balance of cost, function, and aesthetics. By understanding the limits of the "as-cast" finish and knowing when to apply secondary treatments, you can optimize your production for both performance and budget. Whether you need the heat resistance of a high temperature alloy or the corrosion protection of stainless steel, investment casting remains the gold standard for complex, high-quality surfaces.
At our facility, we bridge the gap between traditional craftsmanship and modern technology. We operate a high-capacity foundry that specializes in precision investment casting for the most demanding global industries. Our factory is equipped with fully automated wax injection and shelling lines, which allows us to maintain incredibly consistent surface finishes across thousands of parts. We have extensive experience working with stainless steel, aluminum, and complex high temperature alloy materials. Our team utilizes rapid prototyping to help our clients move from concept to finished metal in record time. We take pride in our rigorous quality control, ensuring that every industrial component leaving our floor meets the exact $Ra$ specifications requested. When you work with us, you are choosing a partner dedicated to the "fine detail" of manufacturing.
Without secondary machining, we can typically reach 60 Ra. With specialized slurries and fine-grain wax, some precision parts can reach 40 Ra, though this is less common for large industrial runs.
Yes. Aluminum and copper-based alloys tend to be smoother. Stainless steel and high temperature alloy materials are more reactive and may require more aggressive cleaning (like sandblasting) to reach a smooth finish.
You should use the Ra symbol (a checkmark-like icon) followed by the maximum allowable roughness value. For investment casting, specifying "As-Cast 125 Ra Max" is a standard industry practice.
For many parts, yes! The precision is high enough that "fit and function" surfaces are often used exactly as they come out of the mold. Only bearing surfaces or high-pressure seals typically require extra machining.
